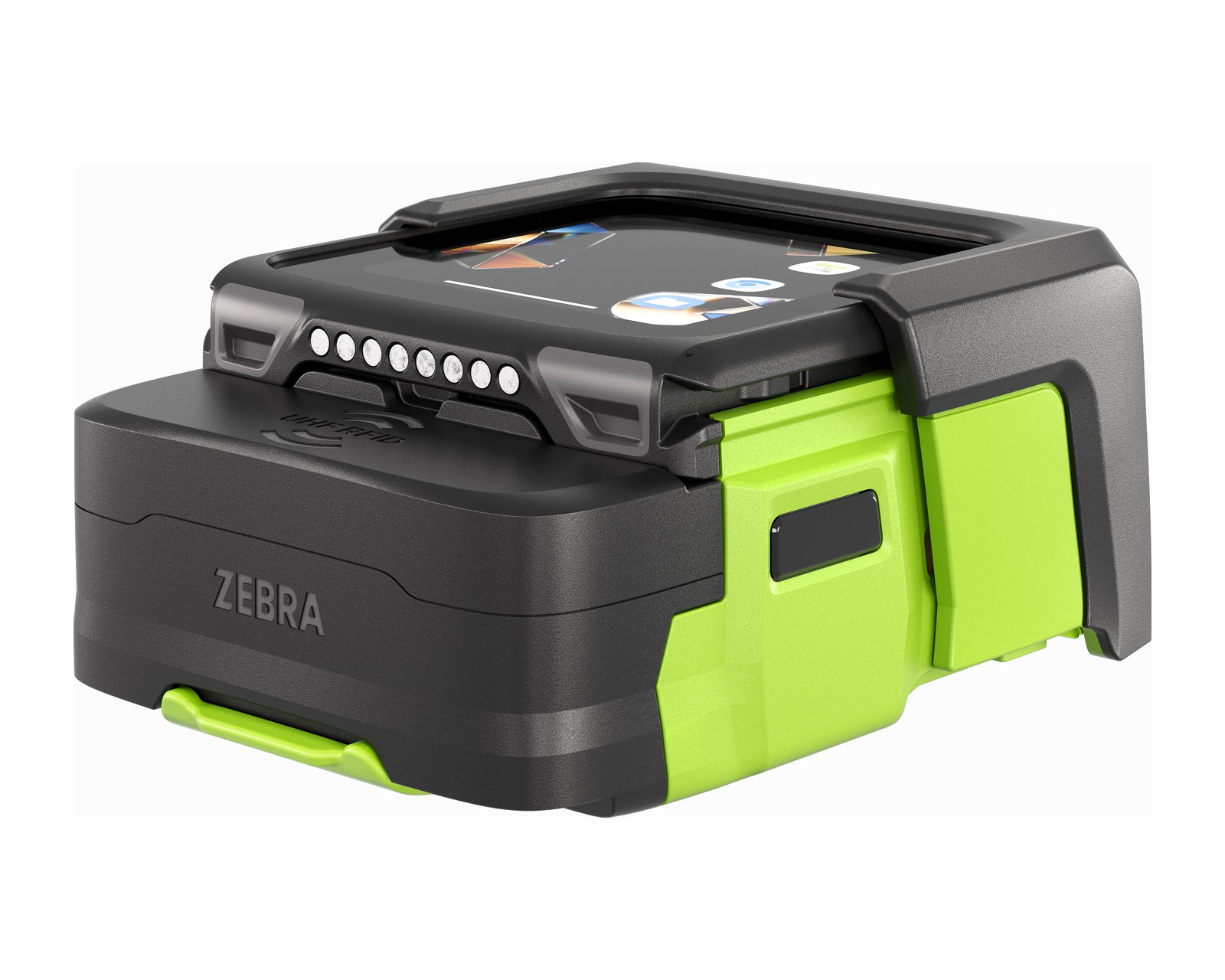

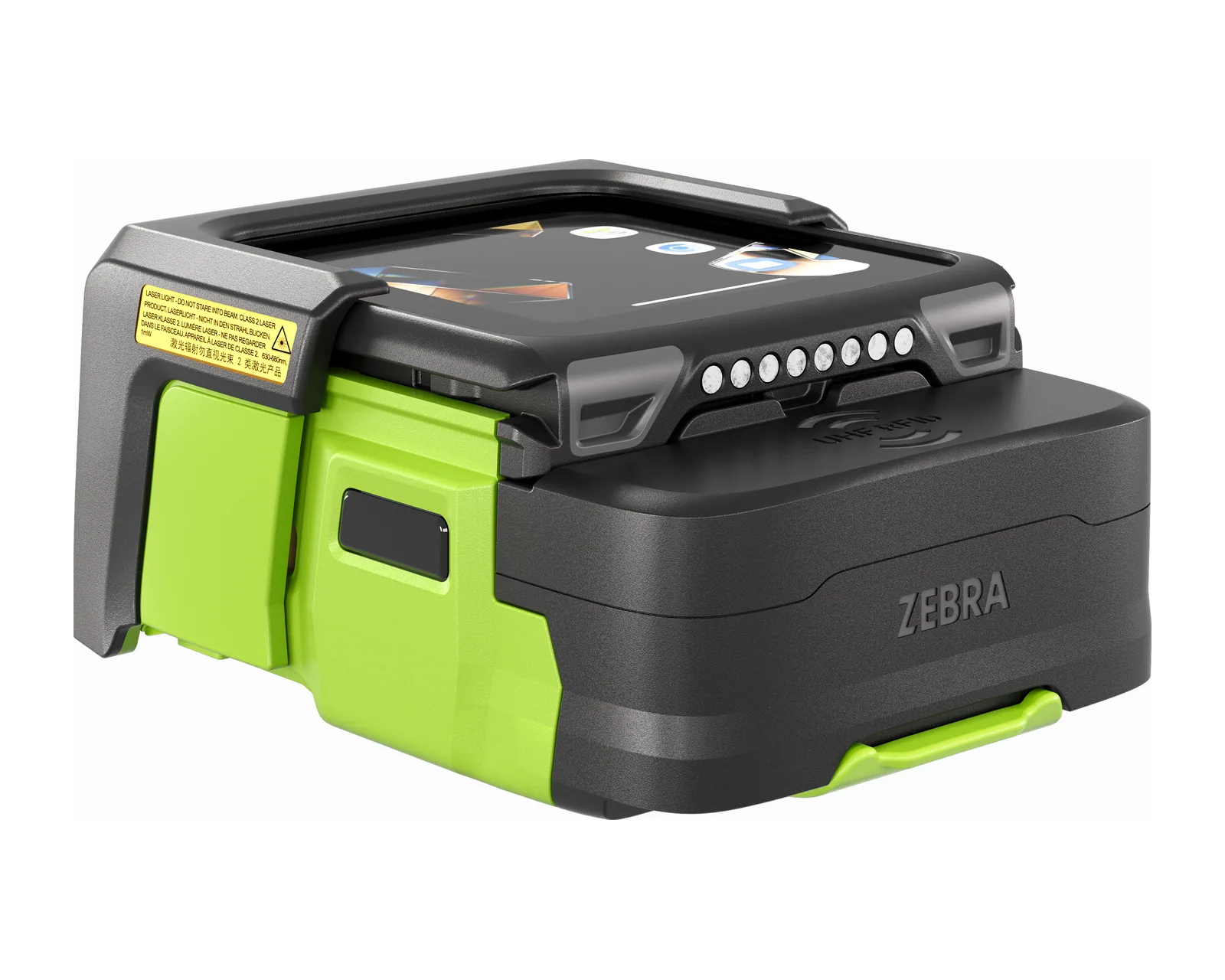

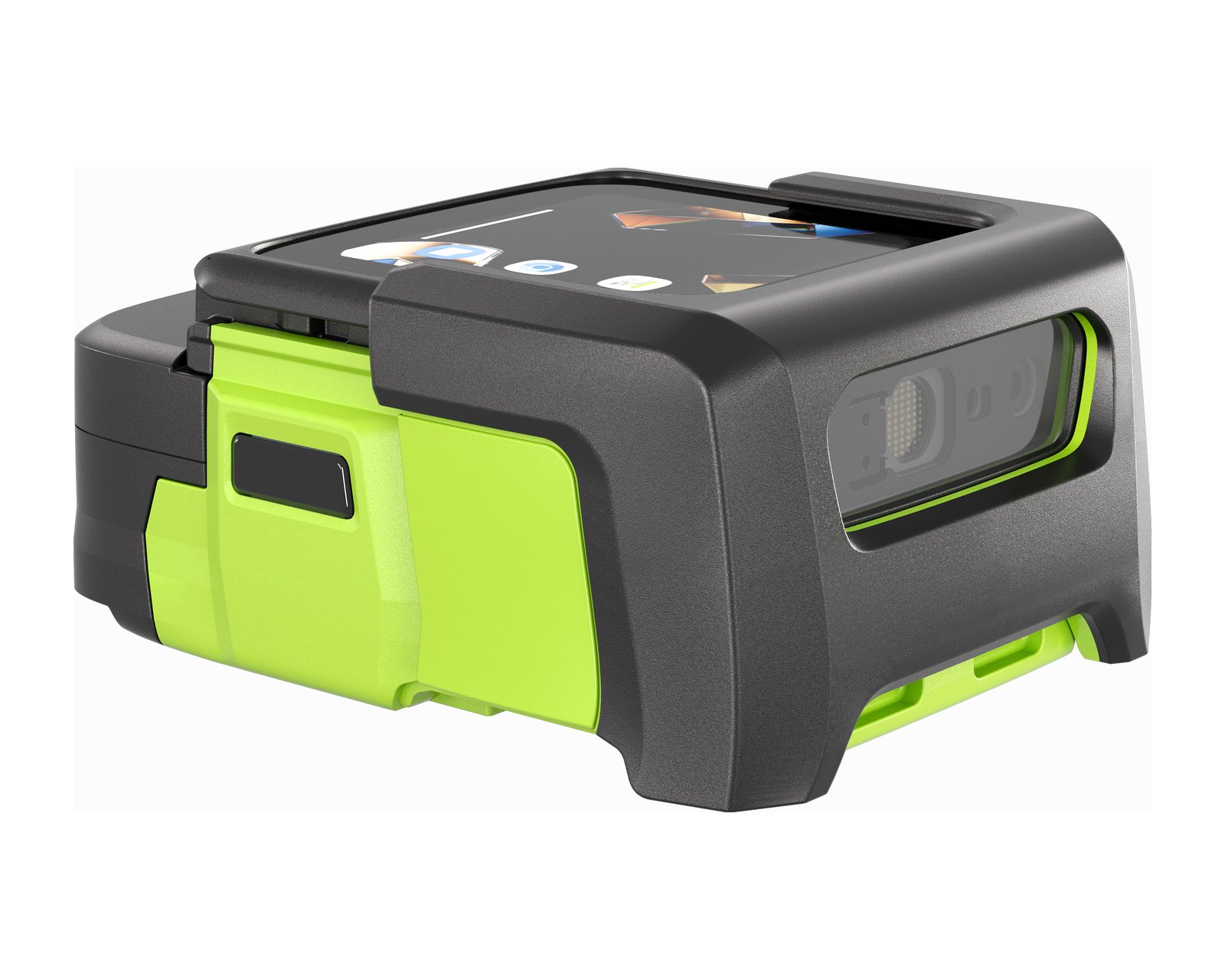

Zebra WS501

Android wearable computer with a 1D/2D scanner and no host terminal

IP ratingIP65
Weight134 g

Model: WS501
Brand: Zebra

Zebra WS501 is an Android wearable computer worn on two fingers or the back of the hand, with an SE4770/SR560 1D/2D imager, Wi-Fi 6 and Bluetooth 5.3. A WS501-R variant adds UHF RFID.

On order

Delivered within one week of payment.

Price on request

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

Ask via messengerWhatsApp Viber Telegram

BrochuresSpec sheet (RU) RU Spec sheet (EN) EN

01Description

The WS501 combines the mobile computer and ring scanner in one wearable device. It is worn on two fingers or the back of the hand and is intended for scan-intensive jobs such as order picking and loading. The WS501-R variant adds UHF RFID.

Key features

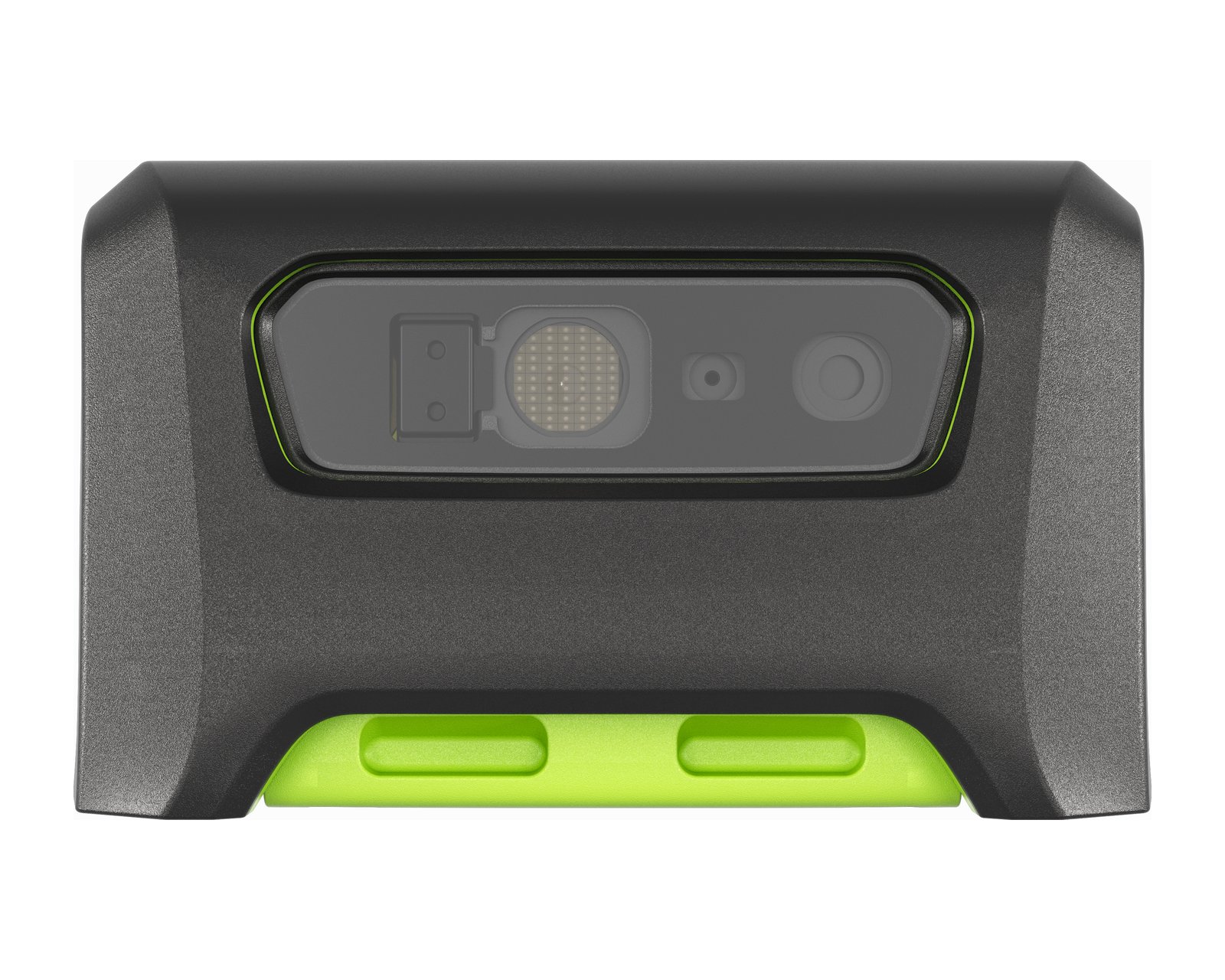

SE4770/SR560 1D/2D imager, manual ambidextrous trigger
2 inch AMOLED touch display (460x460), 2 programmable buttons
Qualcomm QC2290, 3 GB RAM / 32 GB Flash, Wi-Fi 6, Bluetooth 5.3
Removable 1300 mAh battery with hot swap, IP65, 1.8 m drop
Built-in microphone and speaker; push-to-talk support listed as available Q1 2026
WS501-R variant: UHF RFID (EPC Gen 2, nominal read ~1.5 m), SR560 imager, 2400 mAh battery, 196 g, QCS2290 quad-core 2.0 GHz

Typical uses

Warehousing and manufacturing (sorting, put-away, picking, loading and unloading), transportation and logistics, retail. The WS501-R is also listed for inventory management and package handling with RFID tag reading.

Request a quote.

02Specifications

Platform

Operating system	Android; supported versions listed at zebra.com/android-versions
Processor	Qualcomm QC2290 (WS501-R: QCS2290 quad-core 2.0 GHz)
Memory (RAM / storage)	3 GB RAM / 32 GB Flash

Display and data capture

Display	2 inch AMOLED 460x460, optically bonded capacitive touch, glove support
Input	Touchscreen
Scanner	SE4770/SR560 1D/2D omni-directional imager (WS501-R: SR560 1D/2D)

Connectivity

Wi-Fi	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2x2 MU-MIMO
Cellular	No (Wi-Fi only; no WWAN radio listed)
Bluetooth / NFC	Bluetooth 5.3 Class 1, BLE; NFC (tap to pair, HCE)

Power and durability

Battery	1300 mAh (5 Wh) PowerPrecision, removable, hot swap (WS501-R: 2400 mAh)
IP rating	IP65
Drop resistance	1.8 m onto tile over concrete across the operating temperature (WS501-R: 1.5 m per MIL-STD 810G)
Operating temperature	-10 C to 50 C (14 F to 122 F)
Weight	134 g (WS501-R finger mount: 196 g)
