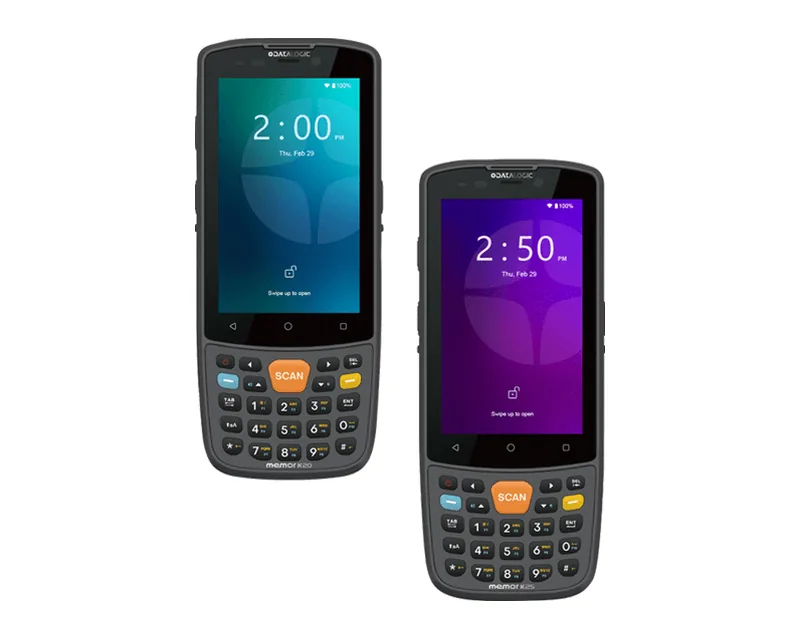

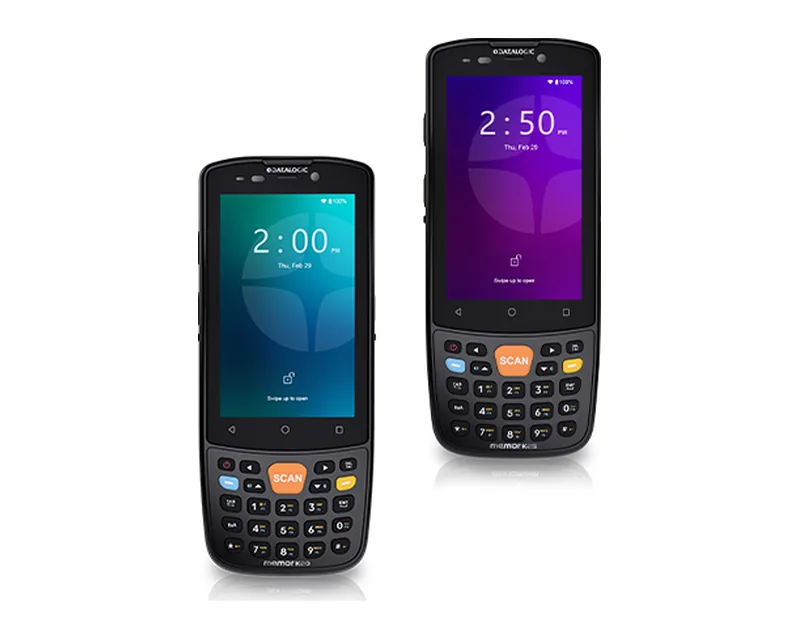

Datalogic Memor K20-25

Compact Android keypad computer with a 24-key keypad: K20 Wi-Fi only, K25 with 4G

IP ratingIP64
Weight265 g

Model: Memor K20-25
Brand: Datalogic

Pocketable Android computer with a backlit 24-key keypad, 4-inch touch screen and 2D imager. K20 is Wi-Fi only; K25 adds 4G LTE for data.

On order

Delivered within one week of payment.

Price on request

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

Ask via messengerWhatsApp Viber Telegram

BrochuresSpec sheet (EN) EN

01Description

The Datalogic Memor K20-25 is a compact Android mobile computer with a physical keypad for retail, logistics, manufacturing and pharmacy. The two models differ in connectivity: Memor K20 is Wi-Fi only, while Memor K25 adds data-only 4G LTE (select countries, not North America) and GPS.

Key features

Android 13 with GMS, upgradeable to Android 15; 2 GHz octa-core, 4 GB RAM / 64 GB eMMC, microSD up to 512 GB
Backlit 24-key keypad plus a 4-inch IPS touch screen (800x480)
Halogen DE2102-HP 2D imager (1280x800), depth of field 4-90 cm
Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5, NFC; K25: 4G LTE (Nano SIM) and A-GPS
Removable 4,850 mAh battery, up to 10 hours of daily use per the datasheet
IP64, 1.5 m drops to concrete (1.8 m with rubber boot)

Typical uses

Retail, transportation and logistics, manufacturing and pharmacy. The physical keypad suits frequent data entry on a device that fits in a pocket.

Request a quote for the Memor K20 and K25.

02Specifications

Platform

Operating system	Android 13 with GMS; upgradeable to Android 15
Processor	2 GHz octa-core
Memory (RAM / storage)	4 GB RAM / 64 GB eMMC; microSD up to 512 GB

Display and data capture

Display	4-inch IPS WVGA 800x480, 5-point capacitive touch, Panda glass
Input	Touchscreen + physical keypad
Scanner	Halogen DE2102-HP 2D megapixel imager (1280x800), depth of field 4-90 cm
Camera	13 MP rear, auto focus, LED flash

Connectivity

Wi-Fi	IEEE 802.11 a/b/g/n/ac; 2.4 and 5 GHz
Cellular	K20: none (Wi-Fi only); K25: 4G LTE data only (select countries, not North America), Nano SIM
Bluetooth / NFC	Bluetooth 5 (Classic and BLE); NFC: yes

Power and durability

Battery	Removable Li-Polymer, 4,850 mAh
IP rating	IP64
Drop resistance	1.5 m onto concrete; 1.8 m with rubber boot
Operating temperature	-20 to 50 C
Weight	265 g with battery
